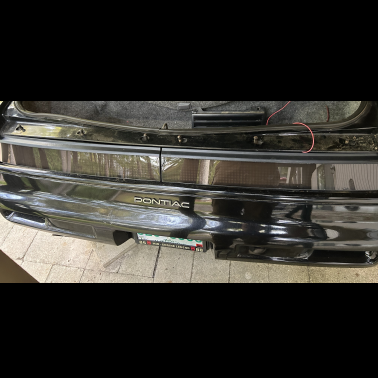

Fiero Notchback Neopixel LED Tail Light Kit (Plug N Play) V1.1

** This item is currently only for Pre-Ordering **

If you have pre-ordered with the 50% off code (   preorder50    ), please note that the remaining 50% will need to be paid when your order is ready to ship.

I have brought this project to ~75% completion on my own time and funding. The remaining ~25% is very expensive and time consuming, The pre-orders will show me the demand for the product and also fund the final designing phase.  I will need 1.5 – 2 months to complete the work listed below. After the work listed below is completed, the expected weekly production volume is 2 – 4 sets per week. Please have patients while I finish the work below and begin completing everyone’s orders.

What’s left to do on this project?

• I need to design/ build/ calibrate two massive, expensive 3D printers that can produce high quality, reliable prints, at a rapid speed.
• The final programming needs to be written, along with multiple lighting modes.
• A post processing procedure needs to be created, to ensure the tail lights have a high quality finish.
• The Plug N Play wiring harness needs to be designed.

Why do they cost so much?

• Each pair of housings takes 120 hours to print.
• Custom, expensive machines are required to print these housings.
• The cost to build these is incredibly high.
• The post processing (sanding / painting) and build time is significant.
• The Plug N Play wiring harness takes quite a while to build.

Version 1.1 Features:

• Custom tail light housings and lenses
• Full RGB Neopixel LED display
• Laser Cut polycarbonate lenses (smoked and frosted)
• Plug N Play ( Only one 12V wire will need to be connected to your ignition accessory wire)
• Bolt-On (Full tail light housing, lenses, and RGB LED display)
• Bluetooth app controls for Android on the app store (BraveTECH Bluetooth Controller)
• Multiple driving modes to select from via the app.
• Multiple Show Off modes to select via the app.

Installation:

• A YouTube installation video will be provided.
• Install an electronic signal light flasher. Do not skip this step.
• Remove factory tail lights housings.
• Install BraveTECH Housings.
• Connect the provided adapters to your factory Brake, Signal Light, and Reverse pigtails. All adapters will be labeled.
• You will need to provide a 12V wire from your ignition accessory wire to the tail lights. Connect the new 12v accessory wire to the 12v wire labeled on the kit. Please use at least an 18 AWG wire for the 12v accessory wire.  Please install a 15 amp inline fuse for this 12v accessory wire. You want the display to only receive 12V when the ignition is turned On.
•  Connect all communication wires together and make sure all adapters are installed correctly.
• Fully function test the display.
