Fiero GT Neopixel LED Tail Light Kit (Plug N Play) V1.1

*** Beta Testing Notice! ***

• This product is new and in a testing phase. Please only purchase if you are able to install and provide feedback quickly . If you purchase this item and experience something out of the ordinary, please contact me and let me know immediately, so I can continue to perfect the design. (Bravendirk@gmail.com)  A FREE updated replacement will be sent to you ASAP. The main goal is always to provide high quality products. As this is a new product, please allow up to 2 weeks for your order to be assembled and thoroughly tested before shipping. Thank you so much for your patience and understanding.

Typical Max Temperature Notice

• Most electronic components have a recommended maximum operating temperature of around 167 – 185 Degrees F (75 – 85 Degrees C). This is very common for nearly all electronic products but many companies don’t provide this information. Please keep this in mind when using this product. If you live in a particularly hot location, please try to park in shaded areas to prevent the sun from overheating the displays. Warranty will be voided if these precautions are not implemented.

Prices are in US Dollars (Per Complete Set)

Required Items (Click The Link):

• Electronic Signal Light Flasher (x1) *Note: The Factory Hazard Light Flasher is already Electronic*

Version 1.1 Features:

• Plug N Play ( Only one 12V wire will need to be connected to your ignition accessory wire)
• Bluetooth app controls for Android on the app store (BraveTECH Bluetooth Controller)
• Multiple driving modes to select from via the app.
• Multiple Show Off modes to select via the app.
• UV protective coating is applied to all BraveTECH Neopixel displays.

Installation:

• And installation and functions YouTube video will be provided shortly.
• Install an electronic signal light flasher. Do not skip this step.

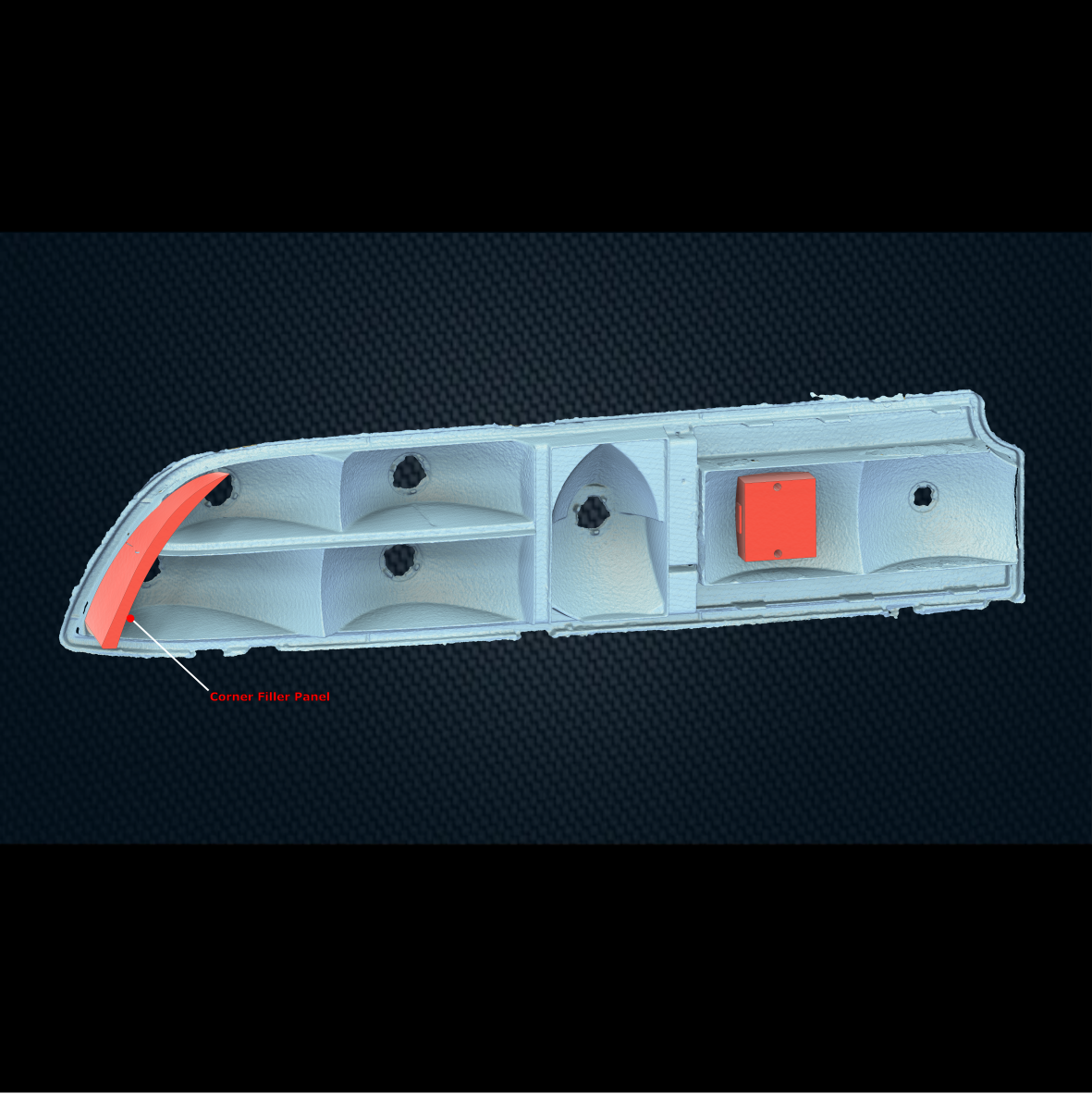

• Open factory tail lights and remove all diffusion panels.

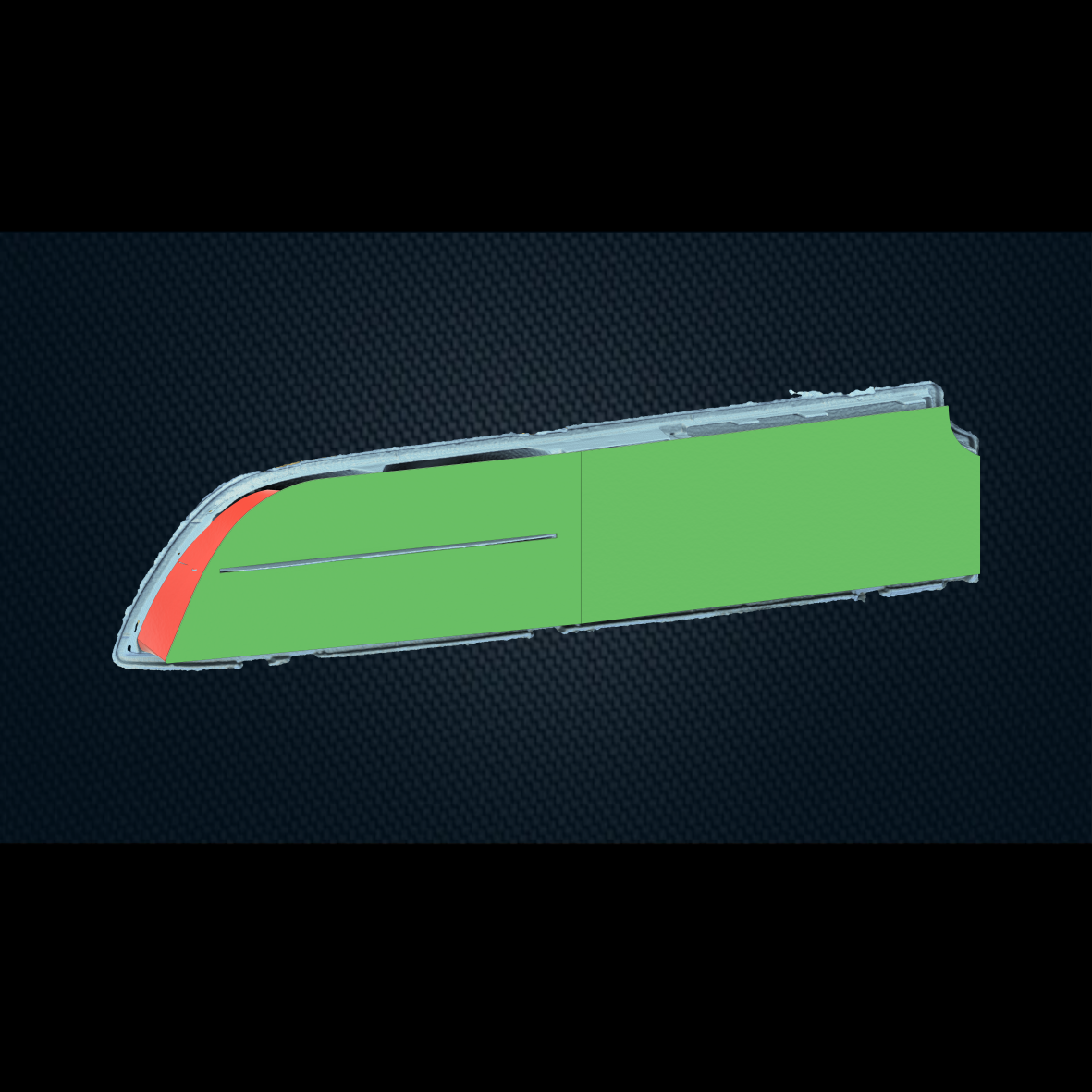

• Carefully install the large LED displays.
• Connect the provided adapters to your factory Brake, Signal Light, and Reverse pigtails. All adapters will be labeled.
• You will need to provide a 12V wire from your ignition accessory wire to the tail lights. Connect the new 12v accessory wire to the 12v wire labeled on the kit. Please use at least an 18 AWG wire for the 12v accessory wire.  Please install a 15 amp inline fuse for this 12v accessory wire. You want the display to only receive 12V when the ignition is turned On.
•  Connect all communication wires together and make sure all adapters are installed correctly.
• Fully function test the display.
• After a successful function test, please adhere the display in place with E6000 Industrial Adhesive. This adhesive is very strong, flexible, and dries clear.
• Re-install your tail light covers and re-assembly your vehicle.
